The Tractor Chariot is an Innovative and Indispensable Tractor Implement

This professional grade, multi-purpose Implement, easily attaches to any Tractor

The Chariot efficiently performs many maintenance, landscaping and wood cutting tasks

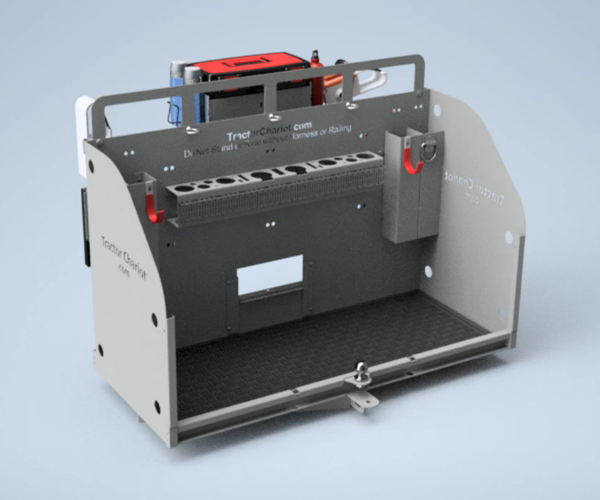

Tractor Chariot Front

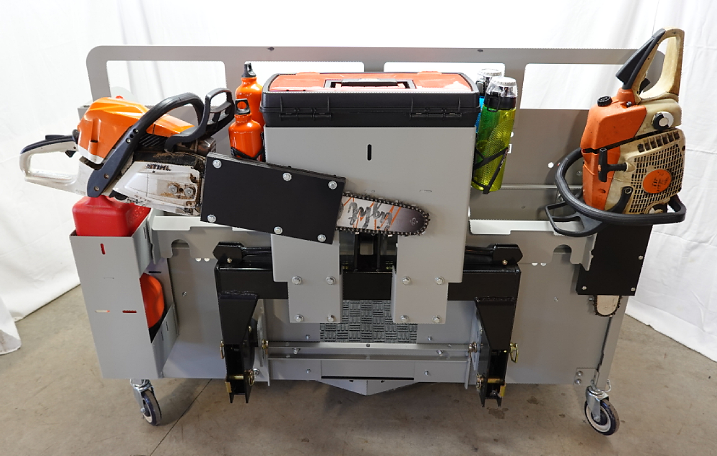

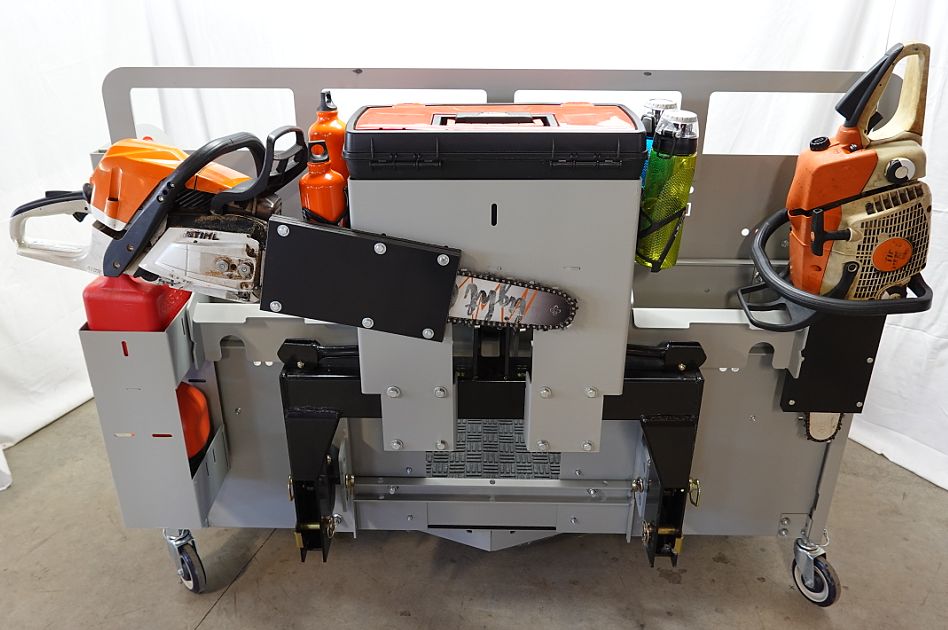

Tractor Chariot Rear

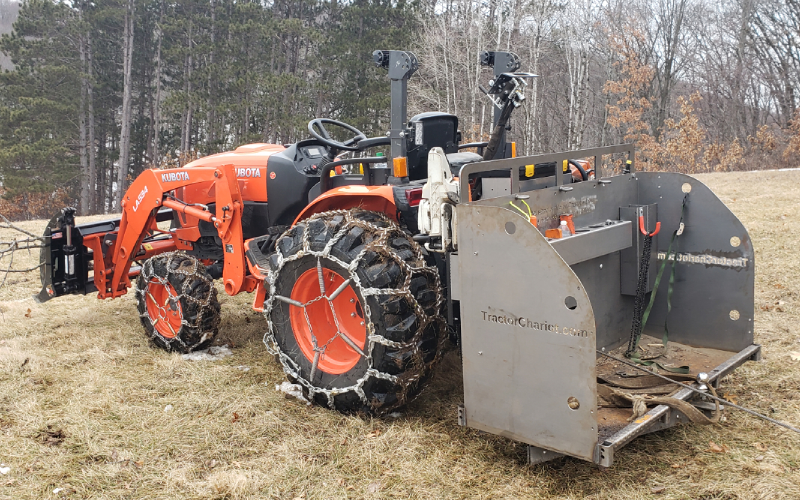

Chariot on Tractor





Chariot Work Platform





Tractor Chariot

Click to Play

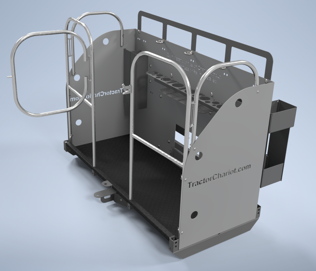

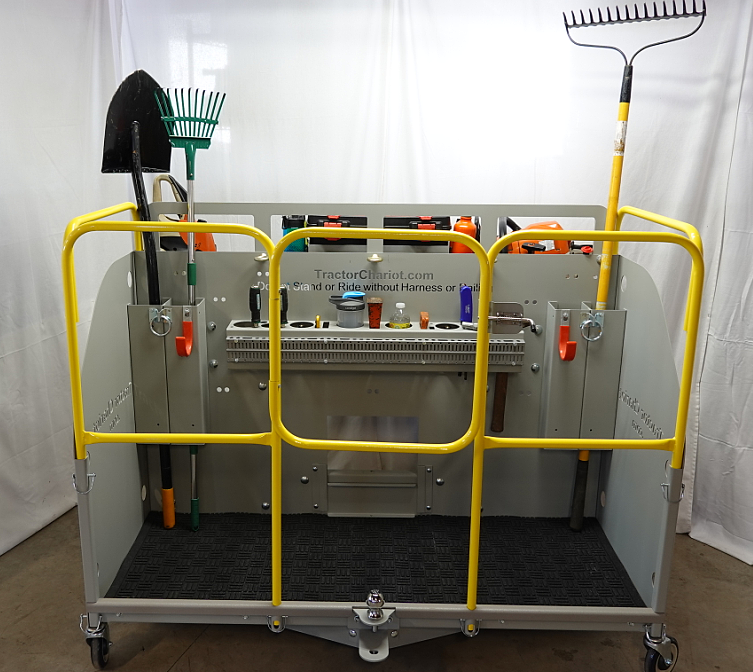

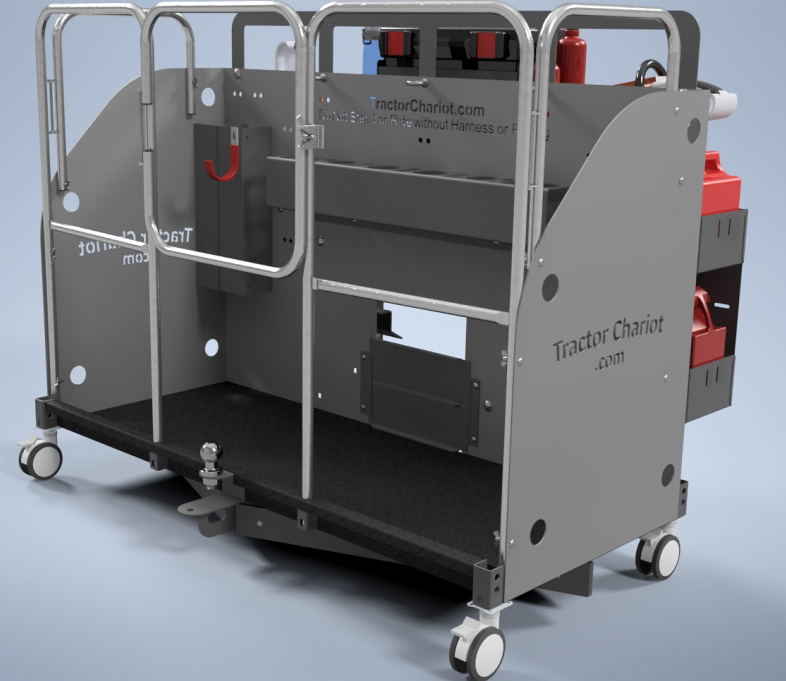

Tractor Chariot with Safety Railing

Click to Play

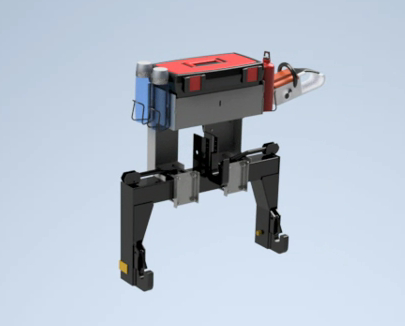

Quick Hitch Tool Rack

Click to Play





Note: All Videos need to be updated for the latest Tractor Chariot

Tractor Chariot Features

Click to Play

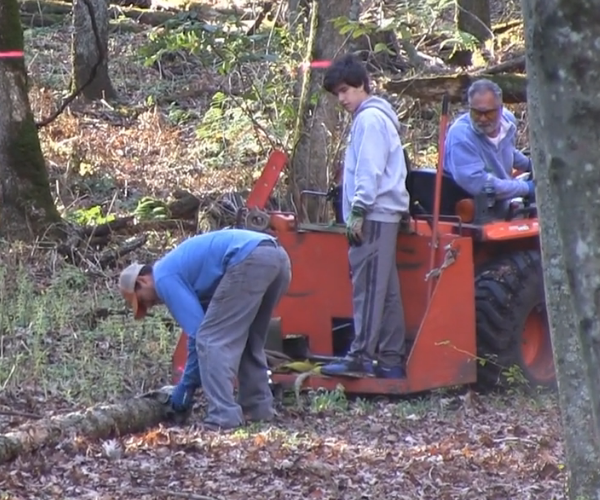

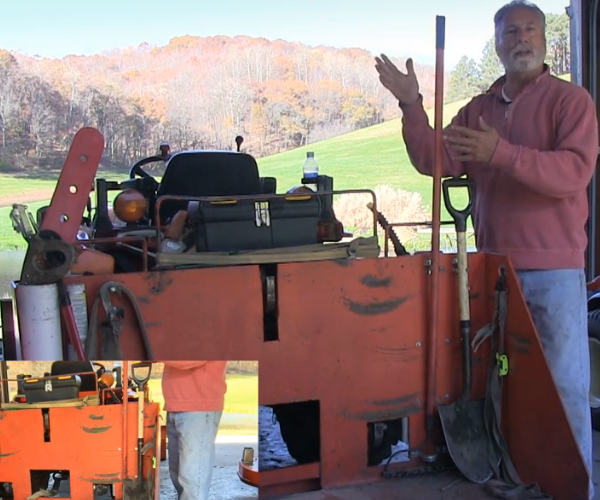

Tractor Chariot at Work

Click to Play







Supercharge your Tractor

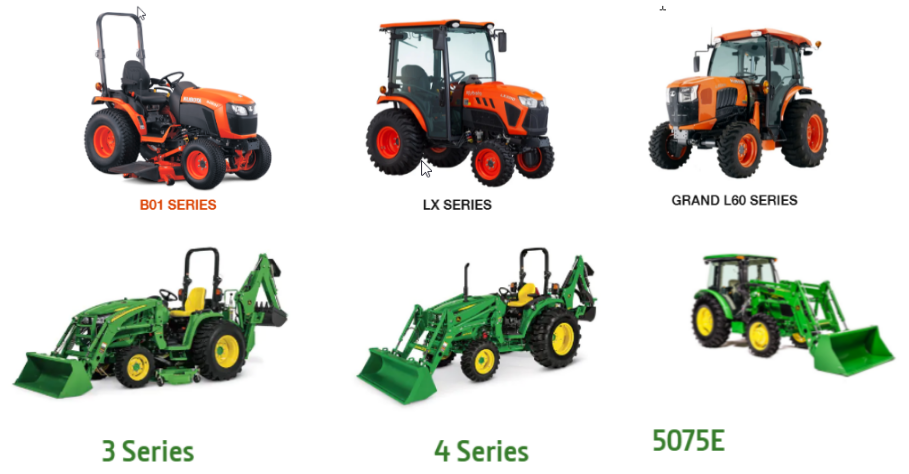

  • The Tractor Chariot fits all compact and commercial Category 1 and 2 Tractors



  • The Tractor Chariot is easily attached and removed from your tractor with two simple levers



  • Dimensions:  L 60" x H "48" x D "27" Weight  250 lbs
  • Quick Hitch Tool Rack (w/o Quick Hitch): 25 lbs
  • Innovative Real World Design and Build to Last



  • Sturdy steel construction with a rigid 3 Point mounting frame



  • Bolt on Accessories to suit your specific needs
  • Long Lasting Rust Free Finish



  • Durable Hammer-Tone Powder Coated Finish



  • Powder Coated in Gray, Kubota Orange and John Deere Green

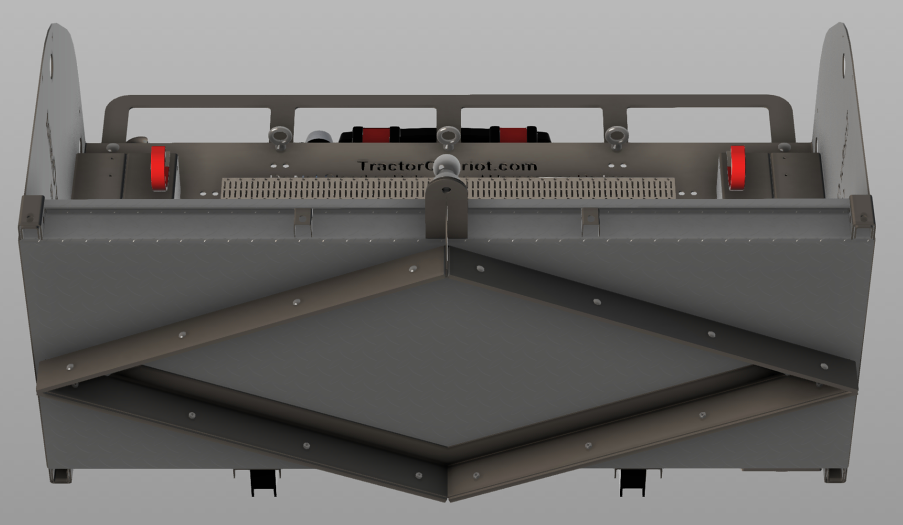

  • The Tractor Chariot diamond shaped Drag easily landscapes dirt, sand, gravel and plows snow



  • A strong diamond shaped landscaping blade, with replaceable wear bars, grades in both forward and backwards directions



  • Side Panels are easily attached, with 2 pins, to keep gravel and dirt from exiting either one or both sides of the Chariot



  • Caster Wheels are easily removed with 4 pins, enabling you to roll the Chariot around for easy storage



  • The Safety Railing is e asily removed with 6 pins and  folds flat for storage
  • The Floor Mat adds comfort and safety



  • Non-Slip Rubber Floor Mat covers the entire base of the Chariot

  • A sturdy Grab Handle makes it easy to maintain your balance when riding in the Chariot

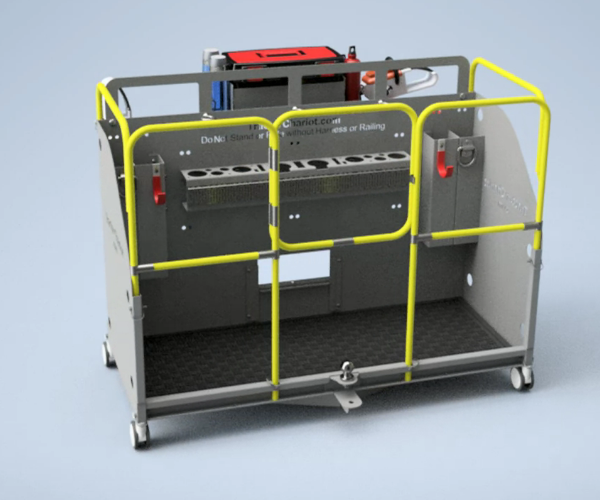

  • Tractor Chariot features a Safety Railing that is e asily removed with 6 pins and  folds flat for storage



  • The Safety Railing Door opens into the Chariot, so it will not  accidentally open, when you are inside the Chariot



  • Safety Caution message is  Laser Cut into Chariot body

"Only Ride in Chariot with Safety Railing or Safety Harness"

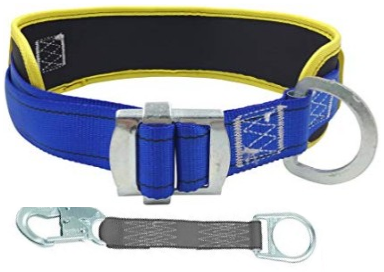

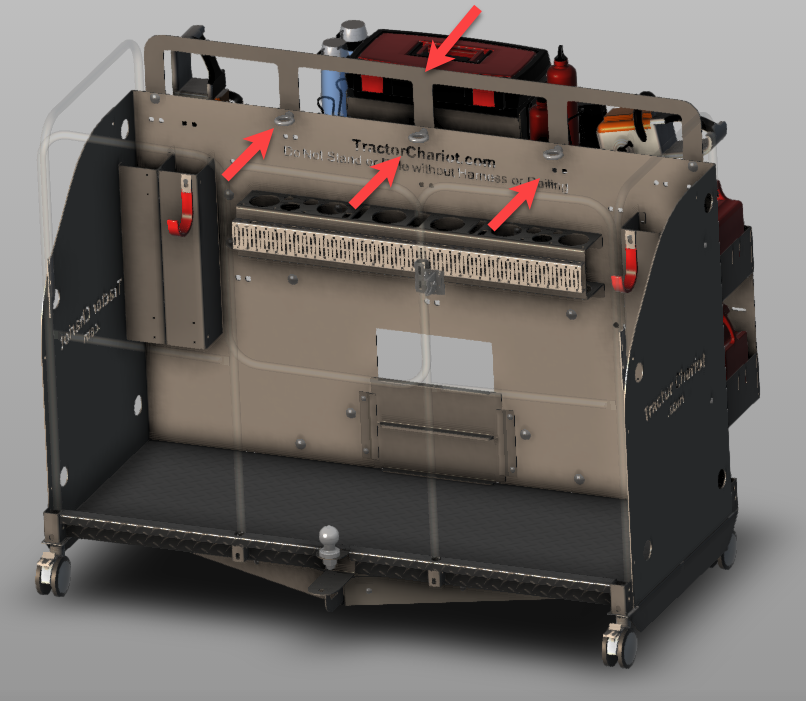

  • Steel Eye Hooks enable you to attach up to 3 Body Harnesses



  • These Hooks can also be used to secure equipment with Gear Ties or Tie Down Straps

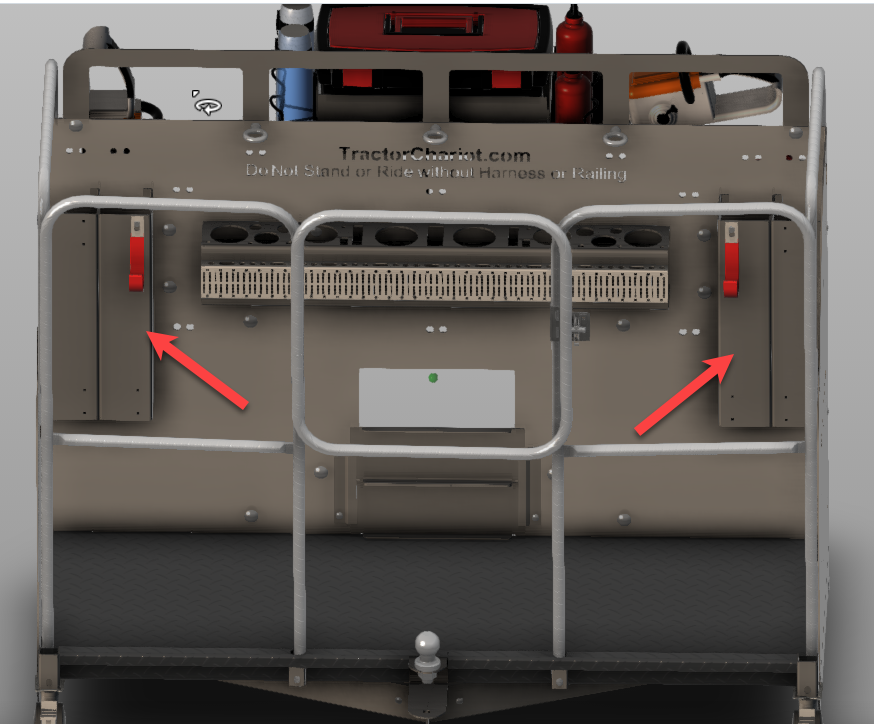

  • 4 Tool Tubes are used to carry long handle shovels, rakes, tree trimmers and pruning shears



  • Hooks and Hitch Rings mounted on the Tool Tubes to hang tow cables, hoses, electrical cables, and other items

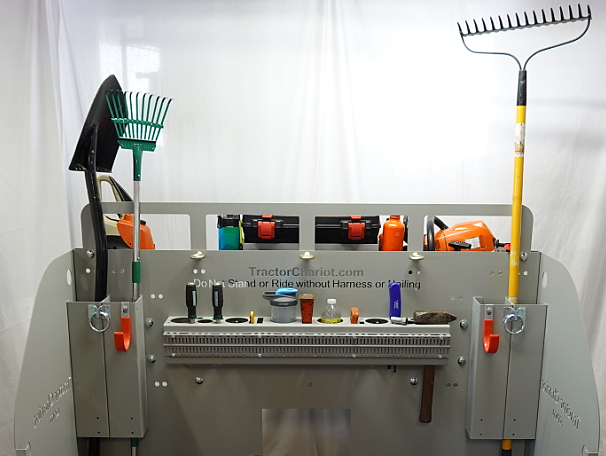

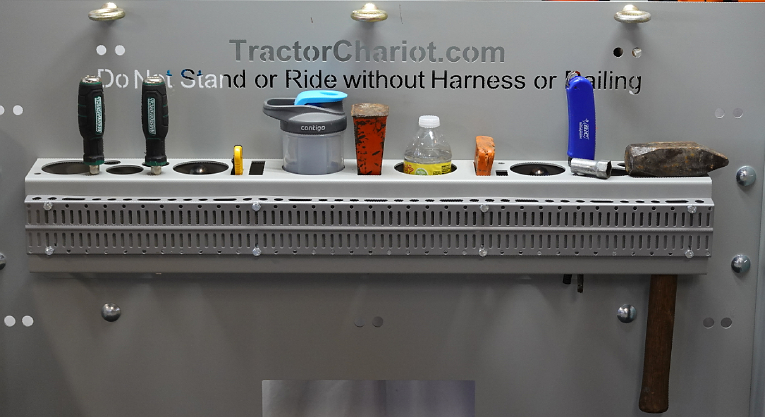

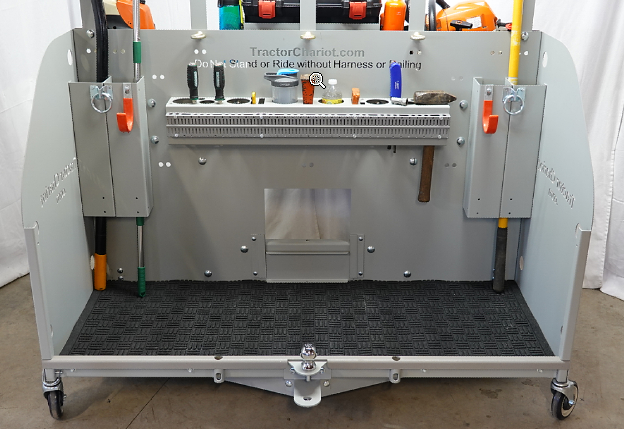

  • A 3 foot Tool Rack holds tools, bottles, woodcutting wedges, hammers, screwdrivers and other tools



  • Inner Holes have a bottom for holding Bottles



  • Outer holes are open to hold long handle tools like sledge hammers and axes

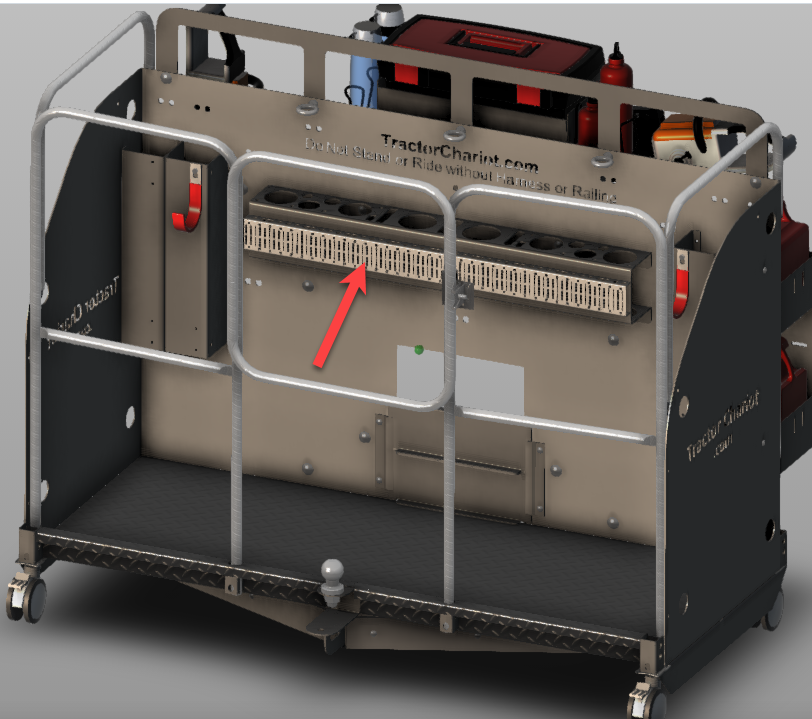

  • The Tap Mount Rail on the Tool Rack and has many accessories for hanging tools and storage containers



  • Hooks and Hitch Rings mounted on the Tool Tubes carry tow straps, tow cables, electrical cables, and other items

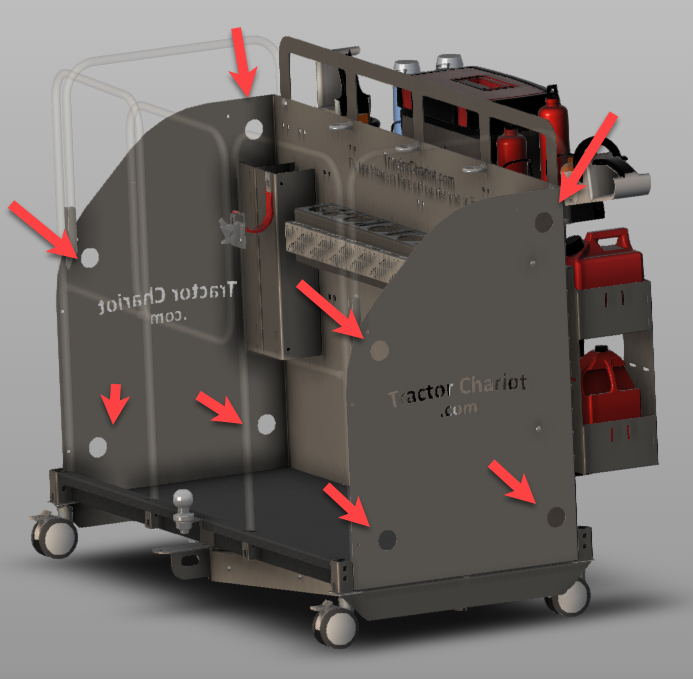

  • Gear Tie holes are used to secure equipment and long handle tools



  • Tie Strap holes are used for securing equipment, and lifting the Tractor Chariot

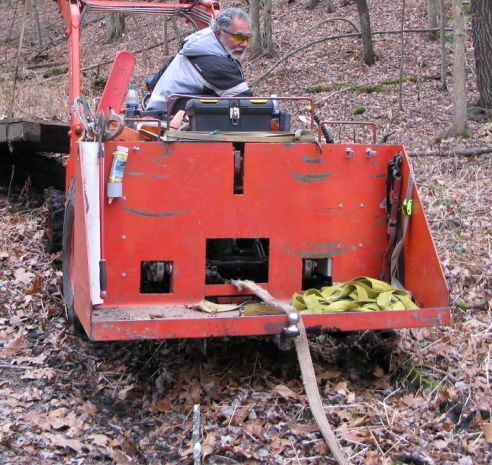

  • A tow cable or strap is attached to the Tractor Tongue though an opening in the Chariot to securely pull logs, vehicles and other heavy objects

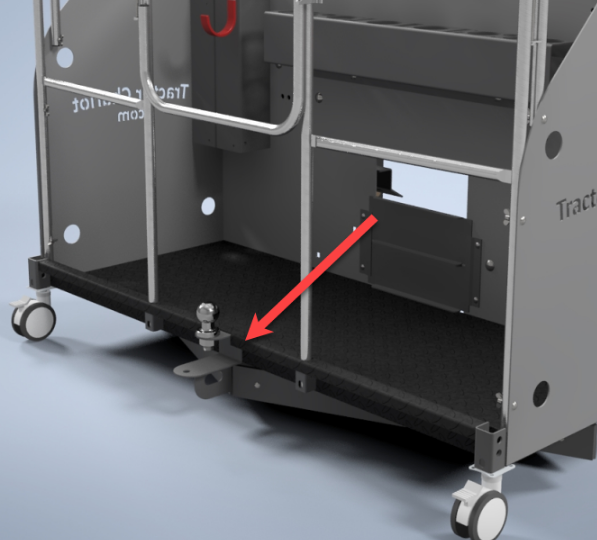

  • A Universal "Ball, Pin or Hook" hitch, can be used for pulling carts, trailers, sprayers, spreaders and landscaping drags

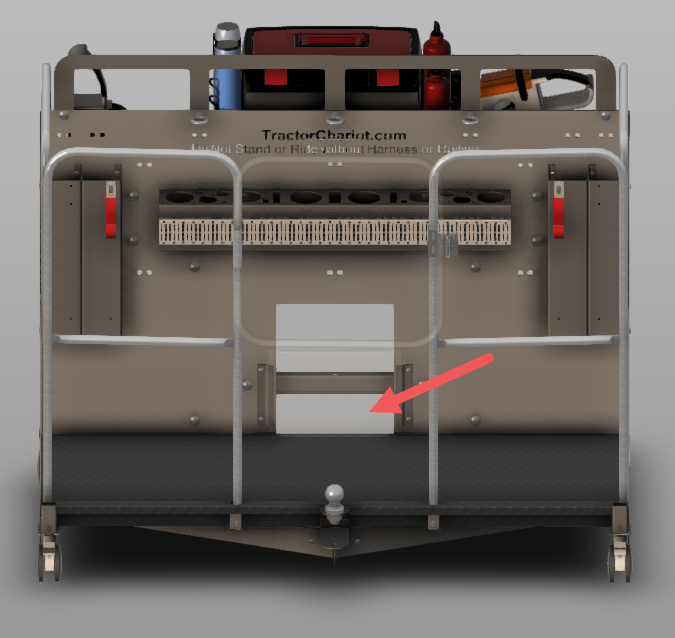

  • A Sliding Door enables you to easily remove dirt and debris from the Chariot



  • 2 Sliding Doors can be used to completely close the opening, to prevent dirt, gravel and snow from entering the Chariot



  • A Scabbard mounted on the Chariot holds up to a 30" Chainsaw



  • The Scabbard makes it easy to remove and insert the Chainsaw



  • The HDPE plastic Scabbard will not dull the Chainsaw teeth

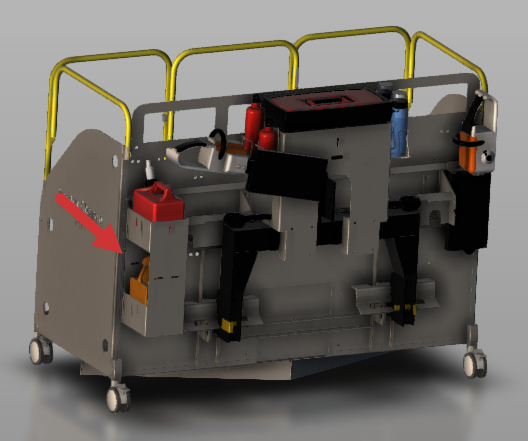

  • A container mounted on the Chariot carries a one gallon Gas can and Chain Lube for easy access

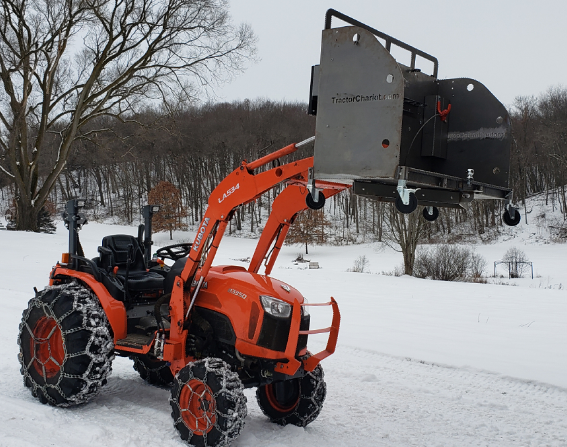

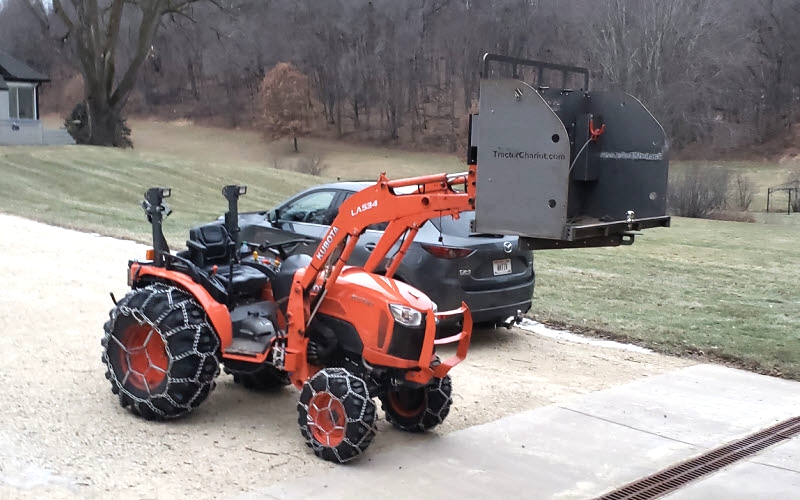

  • Quick Attach brackets transform the Chariot into a Work Platform for Skid-steers and Tractors with Quick Attach Loaders



  • The Safety Railing and Body Harness ensure safe operation of the Work Platform
